Rebuilt for Reliability: The 1000 Ton Ajax Mechanical Forging Press

Modernized and remanufactured to deliver unmatched performance, safety, and service life for your forging operations.

Request a Consultation

Remanufactured, Reimagined, Ready for Production, ready for sale!

Overview:
Built on the robust foundation of Ajax’s standard Series press, this 1000 Ton Mechanical Forging Press has been fully reconditioned with today’s technology to deliver tight tolerances, high uptime, and streamlined operation. Featuring modern controls and a rugged frame design, it’s built to thrive in demanding production environments.

Key Specifications:

  • Stroke: 10"
  • Shut Height: 26.5”
  • Strokes Per Minute: 80
  • Die Seat: 31" x 40"
  • Ram Face: 28.5" x 34"
  • Height Above Floor: 14’ 8”
  • 60 HP Motor
Learn More

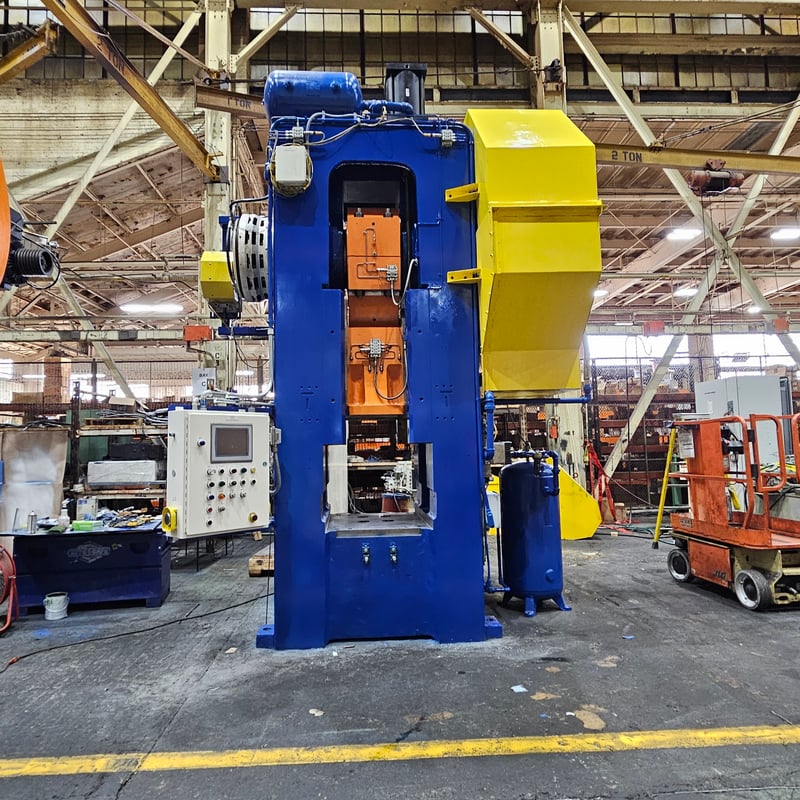

20250512_110901

Modern Features. Proven Durability.

Details:

  • One-piece heat-treated frame minimizes stretch for consistent forging
  • Hydraulic wedge shut height adjustment
  • Slip-protected flywheel to safeguard drivetrain components
  • Long 8-point ram guide system for reduced tilt
  • Compact design improves inspection and maintenance access
  • All components assembled and tested at ACE prior to shipment
Learn More

Smart Controls, Safer Operation

Advanced Control Platform with Safety at Its Core

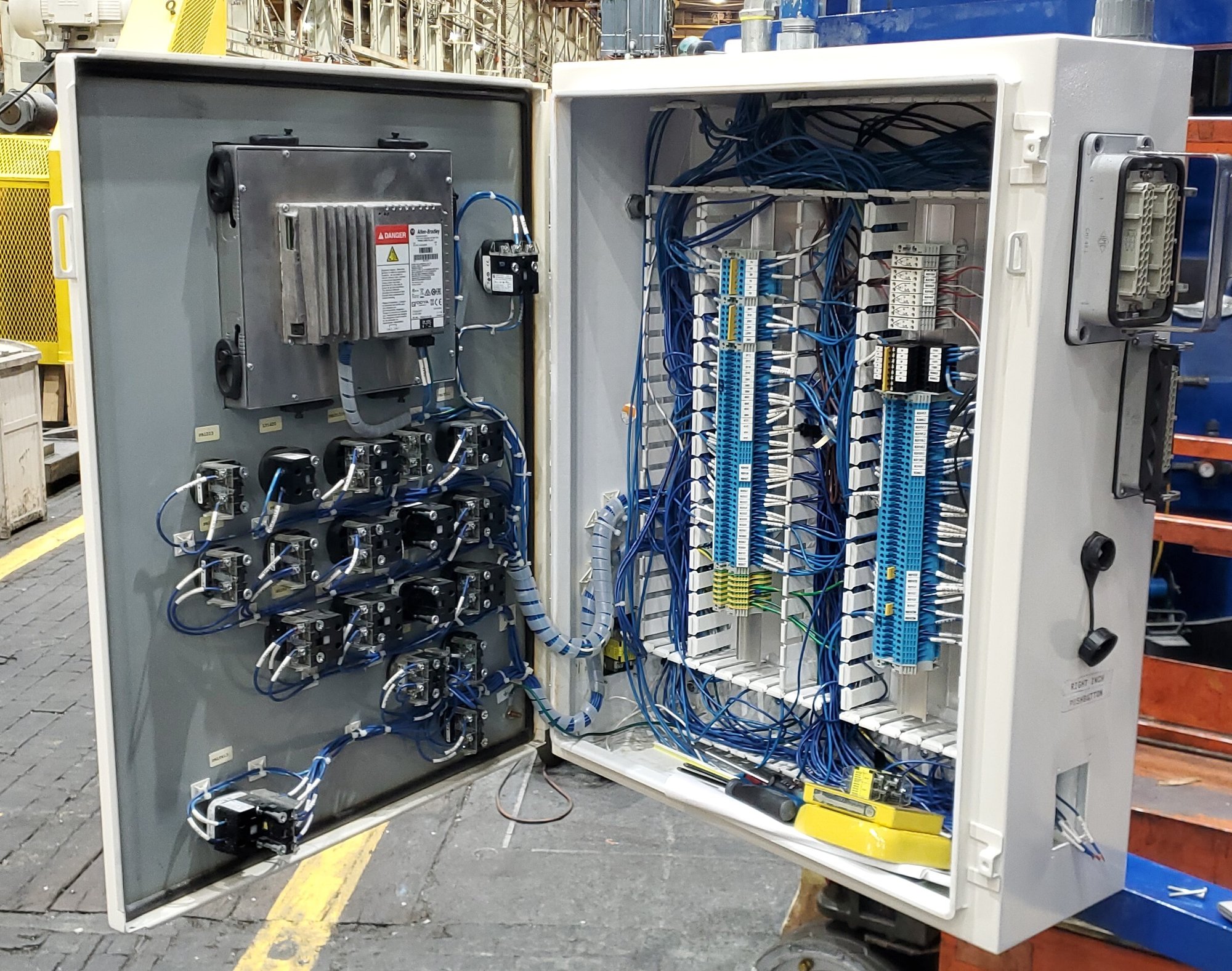

Equipped with a Compact GuardLogix® 5380 controller, the press integrates seamlessly into your production environment. Features include real-time tonnage monitoring, air pressure checks, encoder feedback, and a 10” PanelView+ display with production monitoring and library recipe data. All networking is done via Ethernet/IP with safety-rated communication protocols.

20250509_073815

Service and Support Commitment

We Don’t Just Remanufacture Equipment—We Build Partnerships

Details:

  • 24-month warranty coverage
  • 24-hour service response from ACE’s technical team
  • Preventive maintenance visits included during warranty

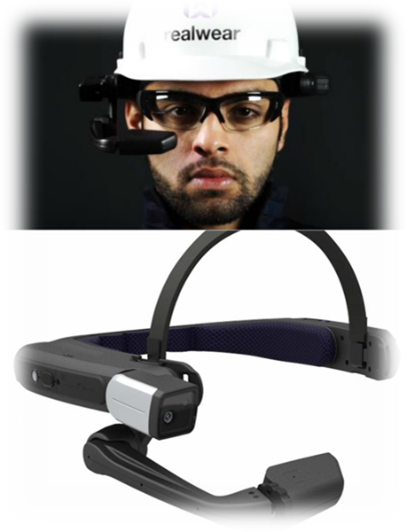

  • One RealWear HT-1 headset for hands-free, remote troubleshooting
  • Full documentation, schematics, and preventive maintenance schedules included
Learn More

Ensure Uptime with Our Parts Stocking Program

Reduce supply chain delays with ACE’s optional parts stocking program. Long-lead components are staged and finished to your machine’s spec and kept on-site at ACE—ready to ship within hours. Ideal for operations running multiple Ajax presses.

Learn More

A Dedicated Team From Start to Finish

With a single point of contact, your ACE project manager keeps your timeline and deliverables on track. Each project team includes engineers across disciplines, procurement, and service techs who remain engaged through installation and startup—ensuring familiarity and accountability at every stage.
